Product Overview Automatic robotic arm bottle feeding and orienting machine is designed for efficient, automated container sorting, positioning and transferring in modern packaging production lines. It delivers stable, high-speed performance and seamless integration with filling, labeling and capping systems, widely used in food, beverage, cosmetic and pharmaceutical industries.
Key Features

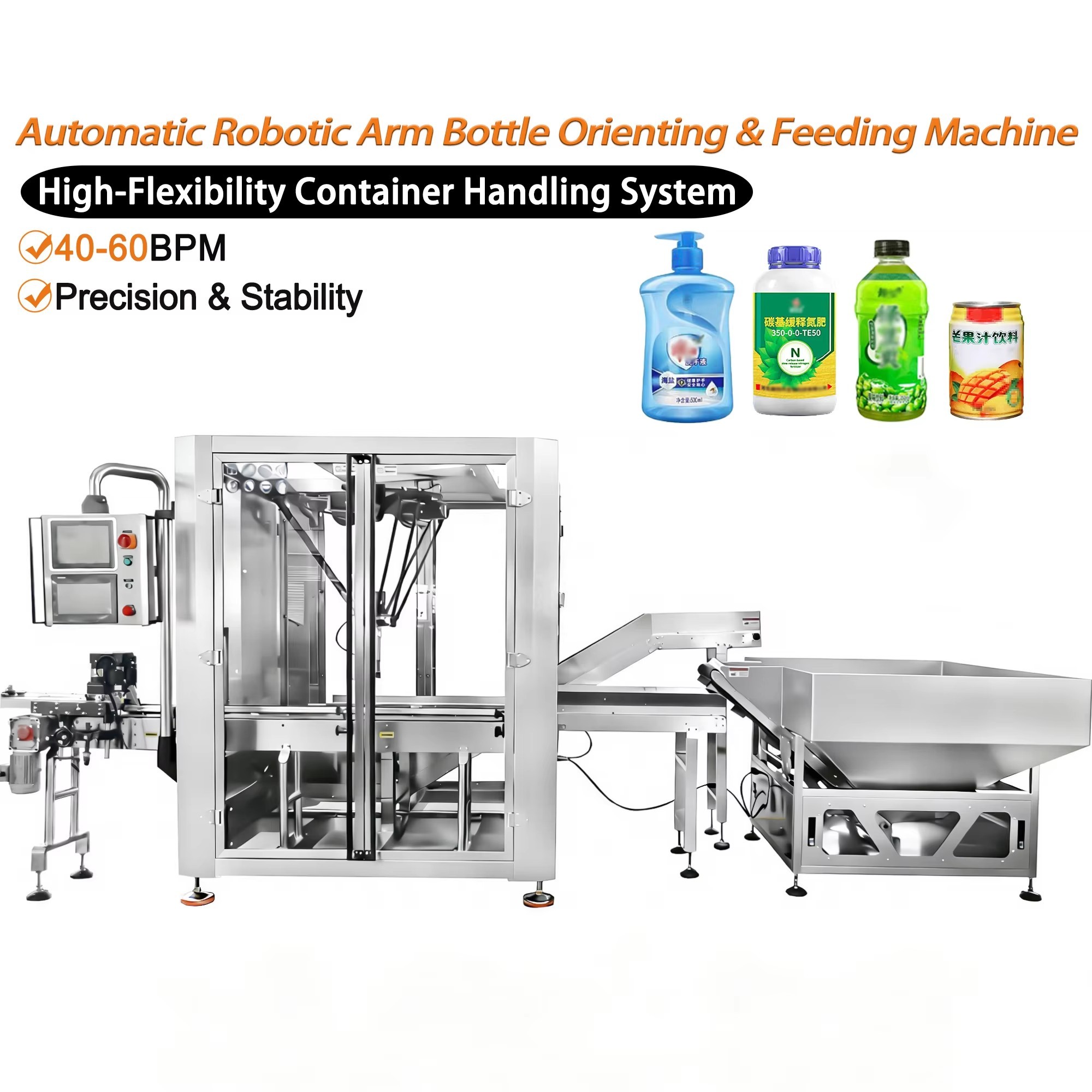

High Efficiency: Processing capacity reaches 40–60 bottles per minute, suitable for medium to high-speed production. Precision Operation: ±0.5mm repeat positioning accuracy ensures consistent bottle orientation and reduces product waste. Wide Compatibility: Adaptable to PET, HDPE, glass and metal containers of various shapes and sizes, with fast changeover. Sturdy & Hygienic: Constructed with 304 stainless steel, meeting strict hygiene standards for food and pharmaceutical applications. Intelligent Control: Equipped with reliable electrical control system, user-friendly operation and low maintenance.
Main Modules

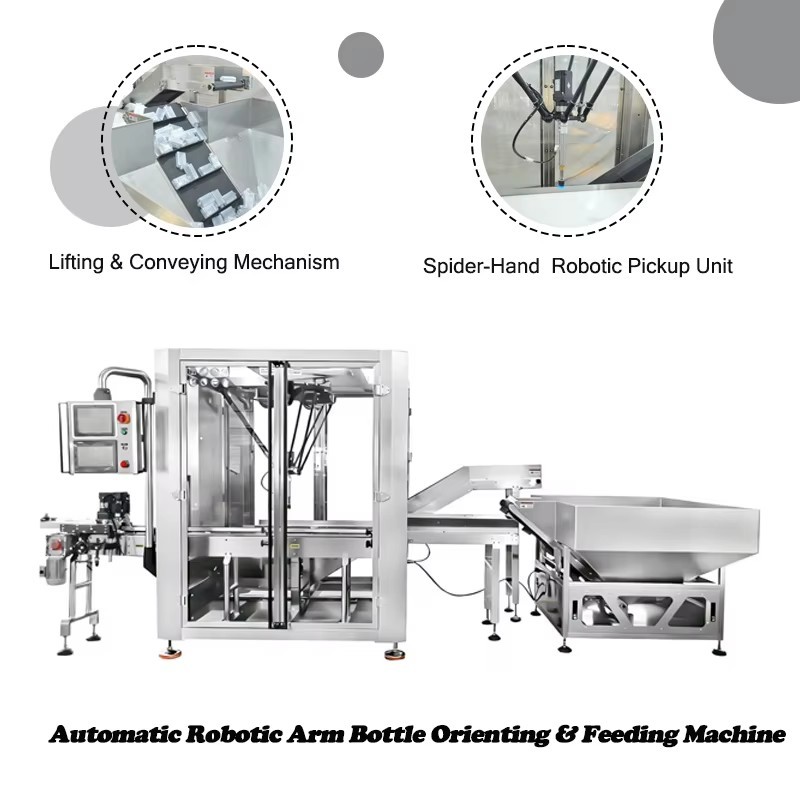

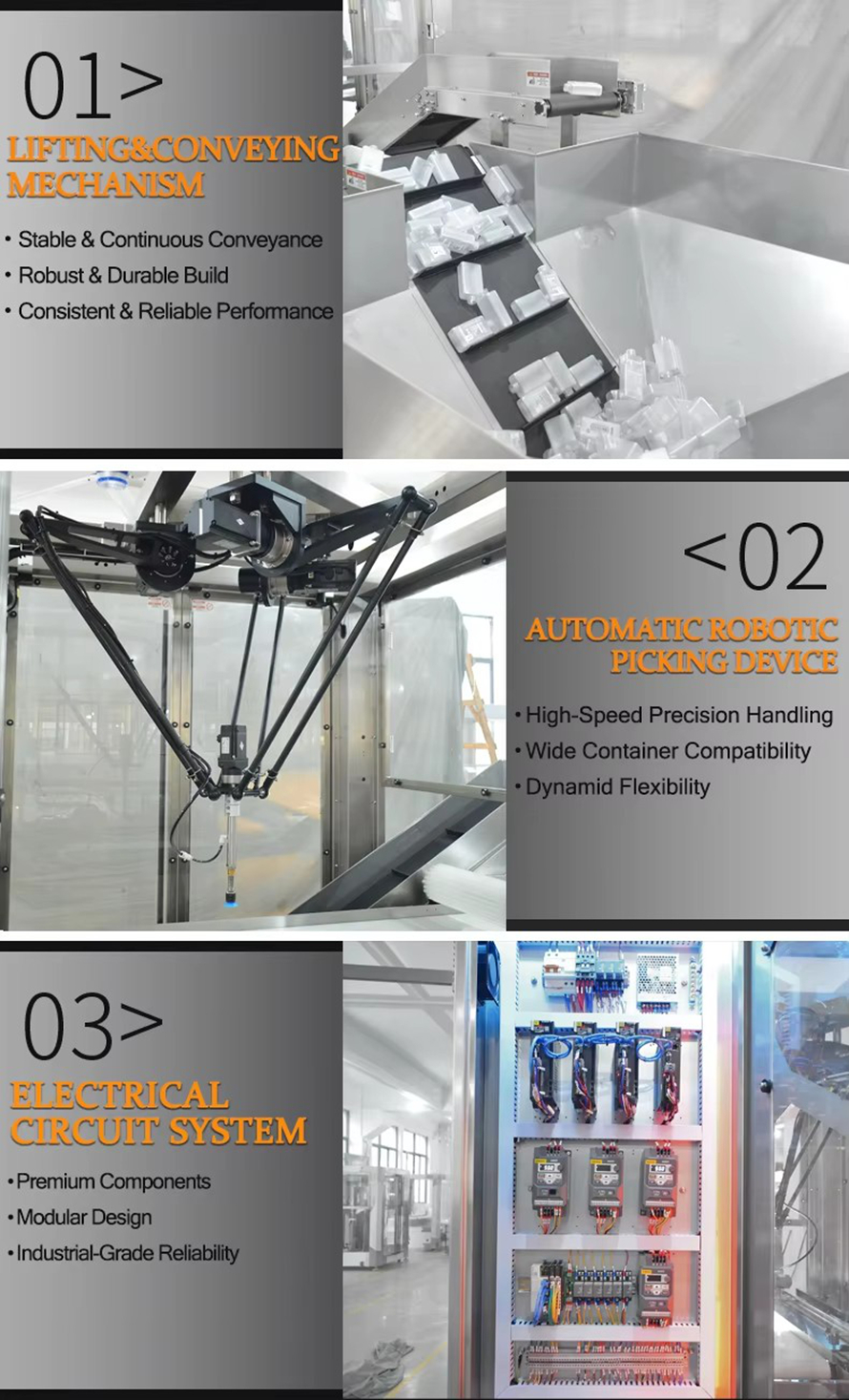

Lifting & Conveying: Mechanism Stable bulk container feeding with continuous and smooth material transfer. Robotic Picking & Orienting Unit: Multi-gripper robotic arm for accurate bottle handling and positioning. Electrical Control: System Premium components, modular design and strong anti-interference ability for reliable industrial performance.
Applications Ideal for automated packaging lines in food & beverage, personal care, household chemicals and pharmaceutical manufacturing.
Number of Axes
3+1
Applicable Products

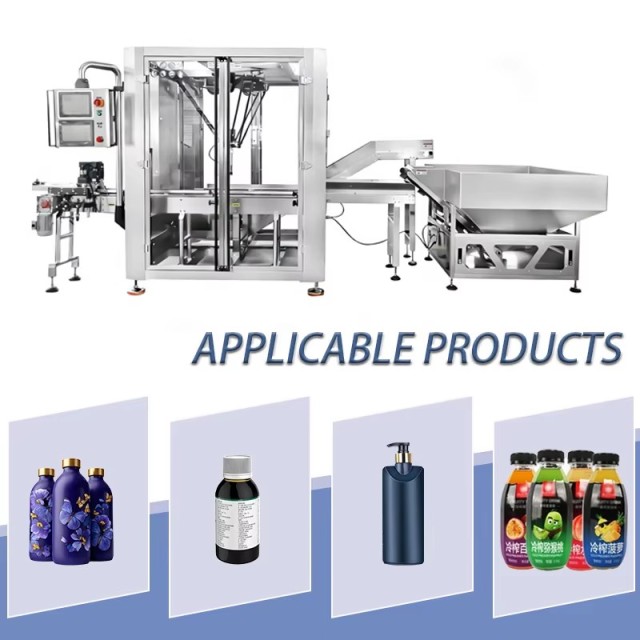

PET bottles, glass bottles, bag,carton
Mounting Method
Overhead Mounted
Reach
500-1100mm
Rated Load
3KG
Maximum Payload
6KG
Boxing Speed
20–30 cycles (depending on the product)
Rotation Range
±360°
Work Envelope
φ500-1100mm 300-400mm
Standard Cycle Time
0.1kg / 0.25s
1kg / 0.36s
2kg / 0.37s
4kg / 0.41s
6kg / 0.43s
Working Enviroment
-10-60° RH≤80%
Air Pressure
0.5-0.8KPA
Voltage
AC220V 50Hz
Power
6KW

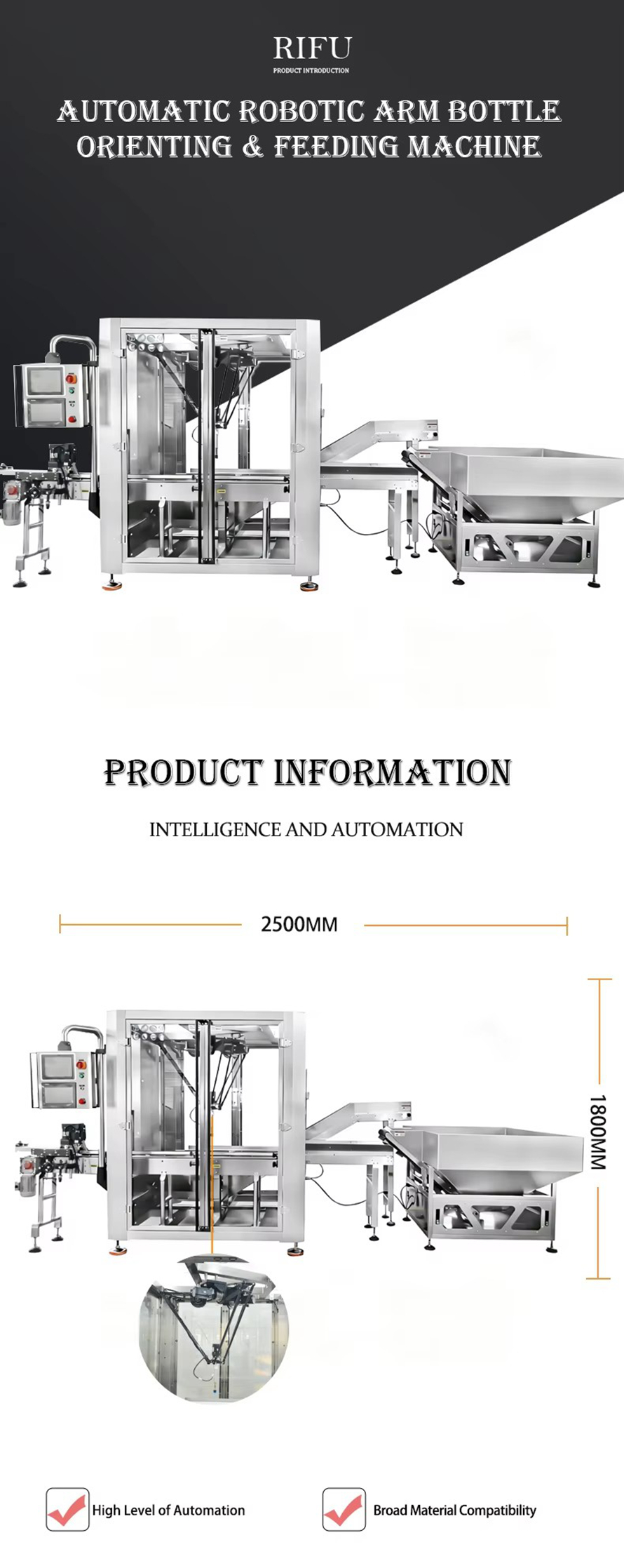

Dimension
2400*1400*2100mm
Net Weight
700KG
